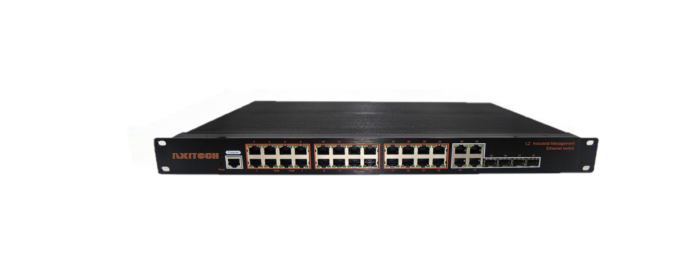

AXMYGS-1024 Series- Industrial 24 port 10/100/1000 Ethernet + 4SFP Ports L2+ Managed switch
AXMYGS-1024 Serieslayer2fullGigabitindustrialEthernetswitchisahigh-performanceEthernet communication product for industrial communication. The product useshigh-performance
industrial-grade switch chip, supports 4 Gigabit light + 24 Gigabit RJ45 ports with AC220V/DC110V industrial power input, which can improve the stability of network communication andsave wiring. AXMYGS-1024seriesproductscanmeetthehigh-endrequirementsofthesmartgridIEC61850-3and
IEC60870-104CompliancespeciallyintheSubstationautomationandindustrialapplication environment and the communication performanceof the equipment.
AXMYGS-1024 Serieslayer2fullGigabitindustrialEthernetswitchisahigh-performanceEthernet communication product for industrial communication. The product useshigh-performance
industrial-grade switch chip, supports 4 Gigabit light + 24 Gigabit RJ45 ports with AC220V/DC110V industrial power input, which can improve the stability of network communication andsave wiring. AXMYGS-1024seriesproductscanmeetthehigh-endrequirementsofthesmartgridIEC61850-3and
IEC60870-104CompliancespeciallyintheSubstationautomationandindustrialapplication environment and the communication performanceof the equipment.
Overview
AXMYGS-1024 Serieslayer2fullGigabitindustrialEthernetswitchisahigh-performanceEthernet communication product for industrial communication. The product useshigh-performance
industrial-grade switch chip, supports 4 Gigabit light + 24 Gigabit RJ45 ports with AC220V/DC110V industrial power input, which can improve the stability of network communication andsave wiring. AXMYGS-1024seriesproductscanmeetthehigh-endrequirementsofthesmartgridIEC61850-3and
IEC60870-104CompliancespeciallyintheSubstationautomationandindustrialapplication environment and the communication performanceof the equipment.
Specifications
| Software Functions | |
|---|---|
| Switch Properties |
Supports Rate Limit, Trunking, Flow Control VLAN Support (IEEE 802.1Q) Broadcast Storm Suppression |
| Redundancy Protocols | Supports ERPS, STP, RSTP |
| Multicast |
IGMP v1/v2/v3 Snooping GMRP and Static Multicast Filtering |
| Security |
IEEE 802.1x, HTTP, RADIUS User Grading and MAC Address Binding |
| Service Quality Management |
SP and WRR Queuing QoS Settings Support |
| IP Address Management | DHCP Server Support |
| Management & Maintenance |
CLI and Web Management LLDP and SNTP v4 SNMP v1/v2c, ACL Software Updating IP/MAC Conflict Alarm Power Off, Power Alarm, Port Alarm Port Mirroring Log Viewing Link Check and NTP Frame Statistics Monitoring |
| Technical Parameters | |
| Protocol Standards |
IEEE 802.3, IEEE 802.3u (100Base-TX/FX), IEEE 802.3x IEEE 802.3ab (1000Base-T), IEEE 802.3z (1000Base-LX) IEEE 802.1D (STP), IEEE 802.1w (RSTP) IEC 61850-3, IEEE 1613 IEEE 802.1Q (VLAN), IEEE 802.1p (Priority), IEEE 802.1x |
| Priority Queues | 4 |
| VLAN Number | 4096 |
| Multicast Groups | 512 |
| MAC Table Size | 16K |
| Backplane Bandwidth | 40 Gbps |
| Switch Delay | < 5 μs |
| Interface | |
| Gigabit Ports |
28 Ports SFP Fiber (LC Connector, Single/Multi-mode) Self-adaptive 10/100/1000Base-TX 1000Base-LX Optical |
| Console Port | RS232, RJ45 |
| Relay Alarm | 5.08mm Terminal Block, 1A @ 24VDC |
| Power Input | 5.08mm Terminal Block |
| Communication Distance | |
| Twisted Pair | 100m (Cat5/Cat5e/Cat6) |
| Multi-mode Fiber | 850nm, up to 500m |
| Single-mode Fiber | 1310nm, up to 20km |
| LED Indicators | |
| Front Panel |
Port: LINK/ACT, SPEED System: SYS Power: PWR1, PWR2, PWR Alarm: ALARM |
| Back Panel |
RJ45: LINK/ACT, SPEED Fiber: LINK/ACT Power: PWR1, PWR2, PWR System: SYS |
| Power | |
| Input Power | AC/DC 220V (85–264VAC) |
| Power Consumption | < 15W (Max) |
| Overload Protection | Supported |
| Reverse Protection | Supported |
| Working Environment | |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -45°C to 85°C |
| Humidity | 5% to 95% |
| Physical Characteristics | |
| Shell | Aluminum Alloy, IP40 Protection |
| Installation | 19-inch Rack Mount, Front & Rear Installation |
| Dimensions | 482.6 × 44 × 315 mm |
| Industry Standards | |
| EMC |
EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 4 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 4 EN 61000-4-6 (CS) Level 4 EN 61000-4-8 Level 5 |
| Impact | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-32 |
| Shock/Vibration | IEC 60068-2-6 |
| Certification & Warranty | |
| Warranty | 3 Years (Manufacturing Defect) |
| Certification | CE, FCC, RoHS |
Features
Compliance
- Support 4 Gigabit SFP ports + 24 Gigabit RJ45 ports
- Support status display with front and backside indicator lights
- Support Axi-Ring patent redundancy technique (failure recovery time < 20ms)
- Support static multicast filtering and IGMP snooping
- Supports broadcast storm suppression and port rate control
- Support isolated power supply, optional dual redundant power supply
- Support power-off, fiber-off, storm and other status relay alarm output
- Support managed functions such as VLAN, QoS, Trunking, and port mirroring
- Wide temperature range design with fanless thermal design
- Designed to satisfy harsh industrial environments
Drawing
Ordering
| Model | Description |
|---|---|
| AXMYGS-1024-4GC |
4 Gigabit SFP Combo Ports + 24 Gigabit TX Ports Single AC 85–264V Isolated Power Supply |
| AXMYGS-1024-16F-4GC |
4 Gigabit SFP Combo Ports + 16 Gigabit SFP Ports + 8 Gigabit TX Ports Single AC 85–264V Isolated Power Supply |
Downloads
Related products
-
AXES-008 — 8 port Industrial Unmanaged 10/100 Ethernet switches
This rugged designed Industrial 5/6/8 port Fast Ethernet Switch is equipped with our high efficiency ColdDesign technology which not only…Read more -

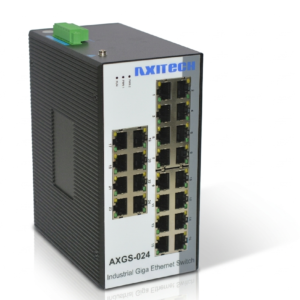

AXGS- 024 — 24 port Ethernet 10/100/1000 Unmanaged Ethernet switches
