AXES-005 – 5 port Industrial Unmanaged 10/100 Ethernet switches

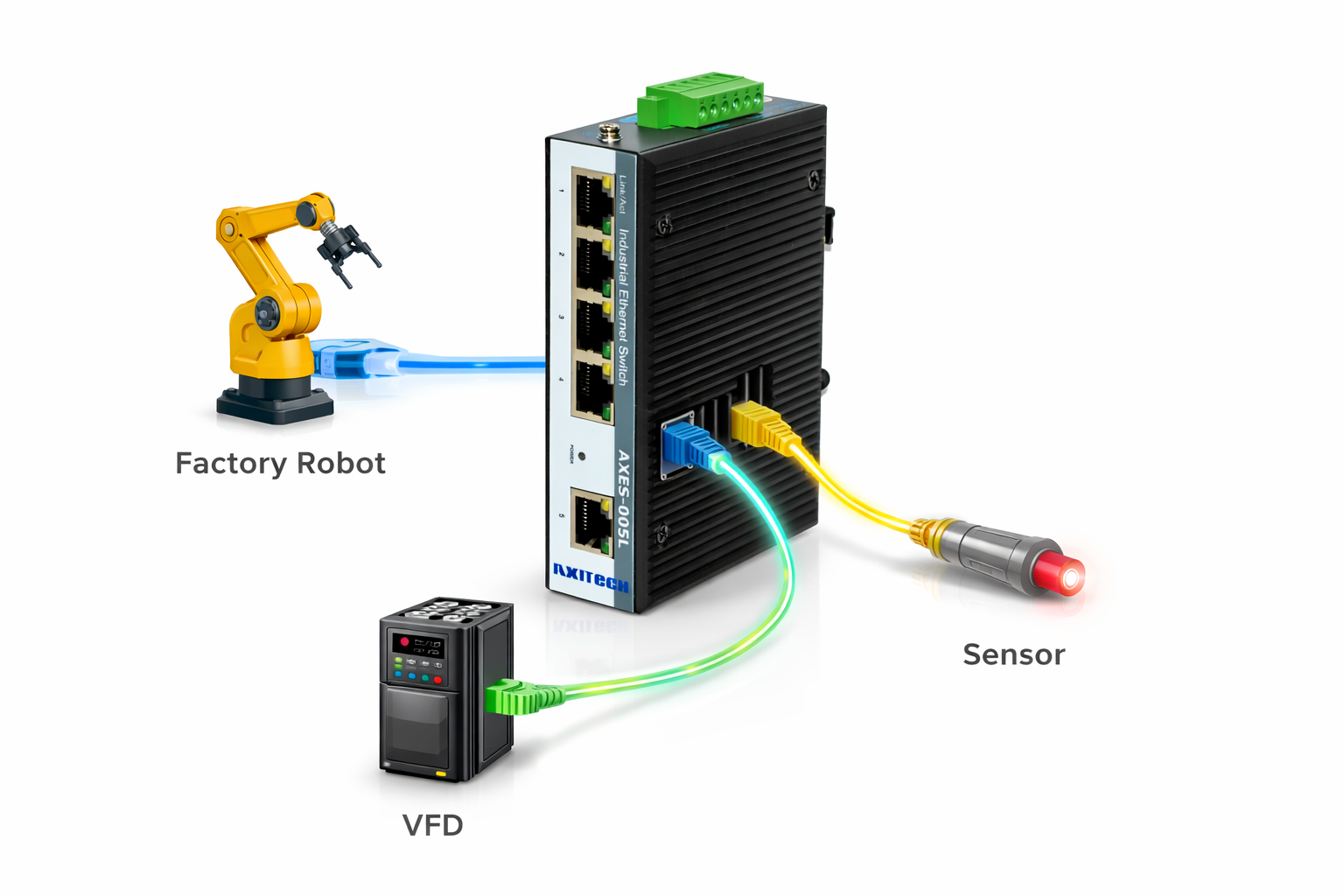

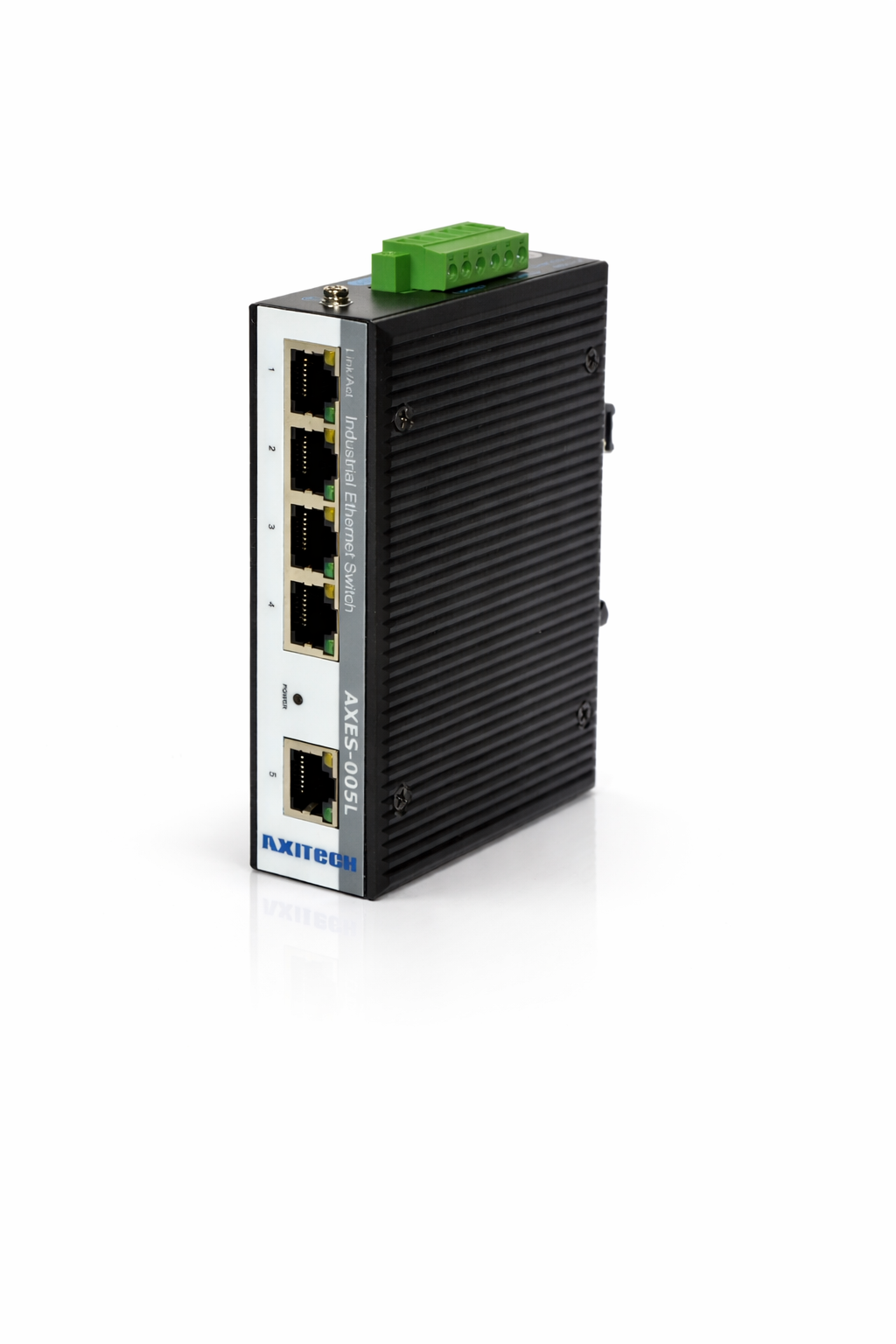

AXES-005 — Industrial Ethernet switch with 5 nos 10/100 Tx, Ethernet ports
- 5 Ports 10/100Tx Rj45
- Dual redundant Power input (9~52VDC)
- -40 to 85 degree working temp
- Din-rail mounting
- Specially Design for Industrial Rugged Environment
₹6,800.00
AXES-005 — Industrial Ethernet switch with 5 nos 10/100 Tx, Ethernet ports
- 5 Ports 10/100Tx Rj45
- Dual redundant Power input (9~52VDC)
- -40 to 85 degree working temp
- Din-rail mounting
- Specially Design for Industrial Rugged Environment
Overview
This rugged designed Industrial 5 port Fast Ethernet Switch is equipped with our high efficiency Cold Design technology which not only meet IEEE standard, also reduce the excessive heat problem to a minimum.High End Industrial standard with Vibration,surge and Heat protection for industrial Rugged Environment,for 24×365 working ,seamless data transmission with Dual redundant power input 9~52VDC. It is being rigorously tested for your Industrial , Security, Transportation and Telco application.
Specifications
| General Specifications | |
|---|---|
| IEEE Standards |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3u 100Base-FX Fast Ethernet IEEE 802.3x Flow Control and Back Pressure |
| Switch Architecture | Back-plane (Switching Fabric): 1.0Gbps |
| Data Processing | Store and Forward |
| Flow Control | IEEE 802.3x Flow Control and Back Pressure |
| MAC Address Table Size | 1K |
| Packet Buffer Size | 1M |
| Network Connectors | |
| AXES-005 | 5x RJ-45 10/100BaseT(X) |
| Cables | |
| Network Cable | UTP/STP above Cat.5e |
| Standard | EIA/TIA-568 10-ohm (100m) |
| Fiber Cable (Multi-mode) | 50/125µm, 62.5/125µm |
| Fiber Cable (Single-mode) | 9/125µm |
| Protocol & LEDs | |
| Protocol | CSMA/CD |
| LED Indicators |
PW1 (Power 1): Green PW2 (Power 2): Green ERR (Fault): Amber RJ-45 Port: LNK (Green), Flash TX/RX Fiber Port: Link (Green), Active Flash |
| Protection & Power | |
| Polarity Protection | Present |
| Overload Protection | Present |
| Power Supply | Redundant Dual DC 9V–56V Input |
| Power Consumption | 3.76W @ 48VDC (full load) |
| Alarm Relay | |
| Relay Contact | 1A @ 24VDC |
| Operation Mode |
Short circuit: when 2 power supplies connected Open circuit: when only one power supply connected |
| Terminal Block | |
| Type | Removable 6-pin |
| Wire Range | 0.34mm² to 2.5mm² |
| Solid Wire (AWG) | 12-24 / 14-22 |
| Stranded Wire (AWG) | 12-24 / 14-22 |
| Torque | 5 lb-in / 0.5Nm / 0.56Nm |
| Strip Length | 7–8 mm |
| Environmental | |
| Operating Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95% (Non-condensing) |
| Storage Temperature | -40°C to 105°C |
| MTBF | 510,304 hrs (MIL-HDBK-217F @ 25°C) |
| Mechanical | |
| Housing | Rugged Metal, IP30 Protection |
| Dimensions |
AXES-005/101/401: 142 x 36.2 x 105 mm AXES-402/404/501/602: 160 x 50 x 140 mm |
| Mounting | DIN Rail & Wall Mounting |
Features
Compliance
| Certifications & Compliance | |
|---|---|
| EN55022/24 | ITE Equipment |
| EN50155 | Railway Applications – Electronic Equipment used on Rolling Stock |
| EN55011 | Industrial, Scientific and Medical (ISM) Equipment |
| EN50121-3-2 | Railway Applications – Electromagnetic Compatibility – Rolling Stock Apparatus |
| EN50121-4 | Railway Applications – Electromagnetic Compatibility – Emissions & Immunity of Signaling and Telecommunications Apparatus |
| Safety | |
| Standard | IEC EN60950-1 |
| EMC / EMS | |
| Compliance | CE, FCC, VCCI |
| EMI | |
| FCC | Part 15 Subpart B Class A |
| CE | EN 55022 Class A |
| Environmental & Mechanical Tests | |
| Vibration | EN 50155 / EN 60068-2-6 |
| Shock | EN 50155 / EN 60068-2-27 |
| Free Fall | EN 50155 / EN 60068-2-32 |

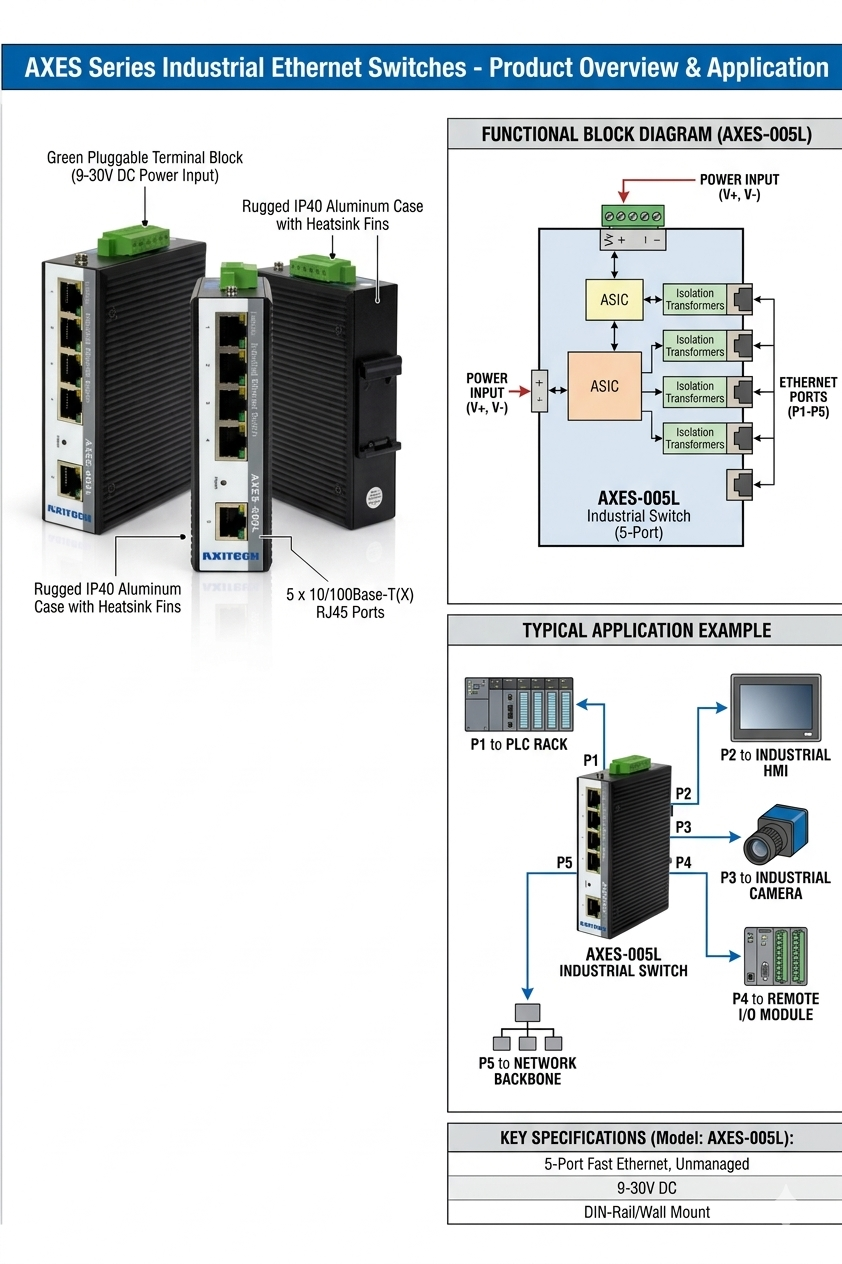

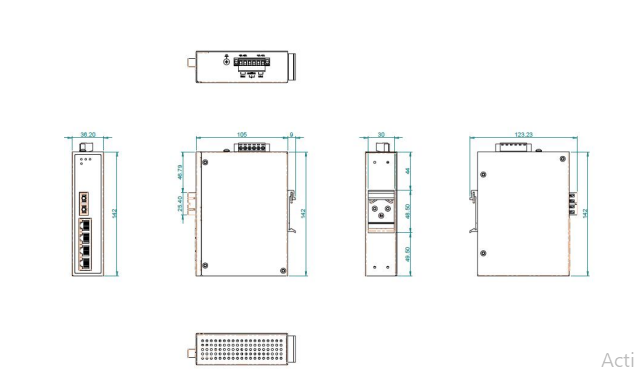

Drawing
Ordering
| Model | Ports & Description |
|---|---|
| AXES-005 | 5 Port 10/100 Tx,single power input(9~30VDC),Din-rail mount |
| AXES-005L | 5 Port 10/100 Tx,Dual redundant power input(9~52VDC),Din-rail mount |
Downloads
| Datasheet | |
|---|---|
| Datasheet | Download |
| Quick Install Guide | |
| Quick Install Guide | QIG Download |
