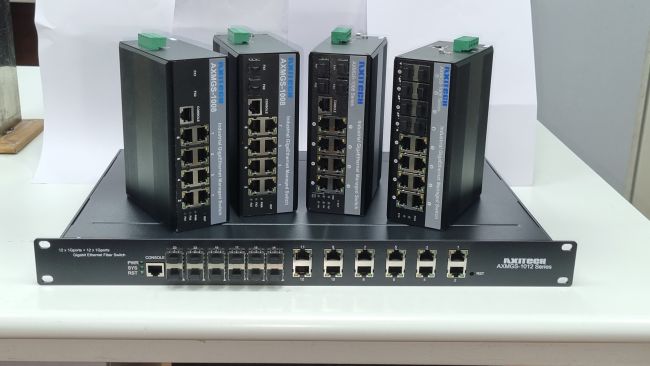

AXMGS-1008 Series – Industrial 8 port 10/100/1000 Ethernet + 2/4/8 SFP Ports L2+ Managed switches
AXMGSSeriesIndustrialEthernetswitch

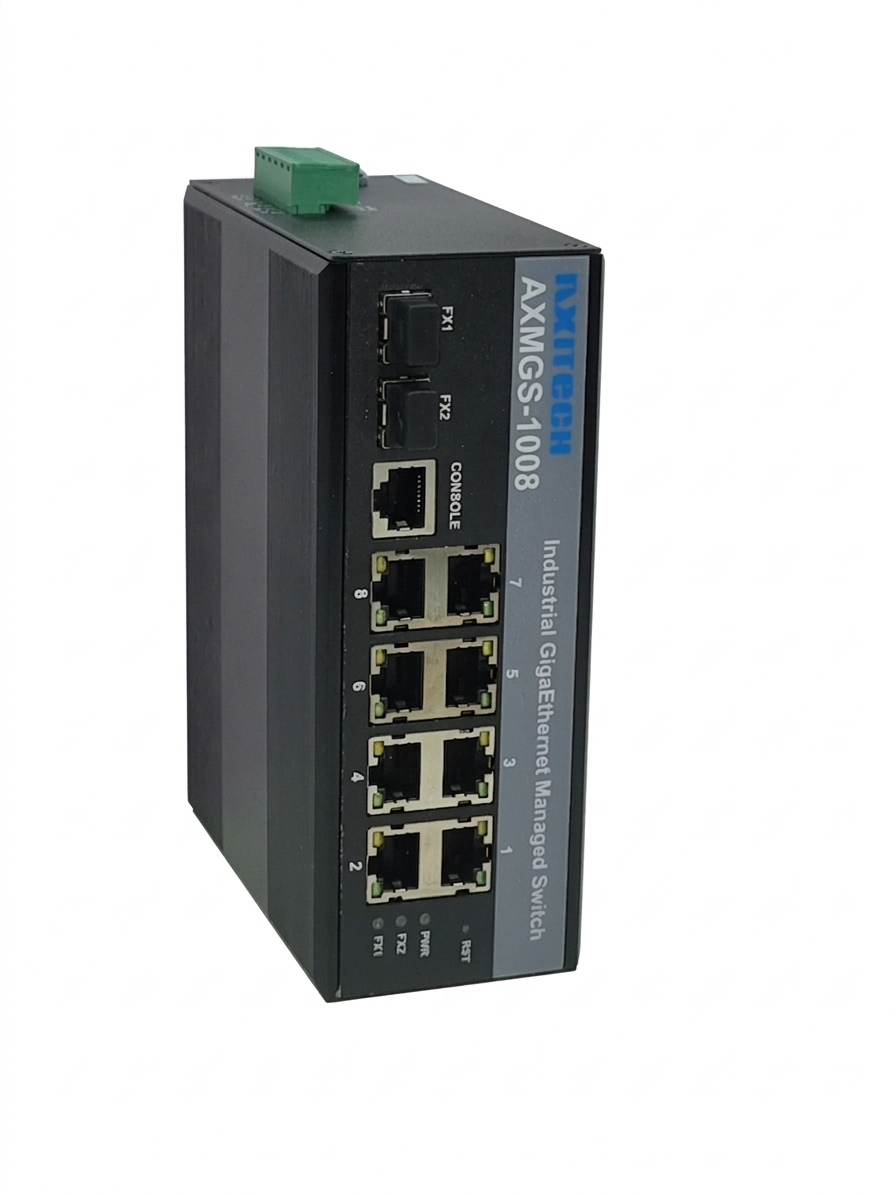

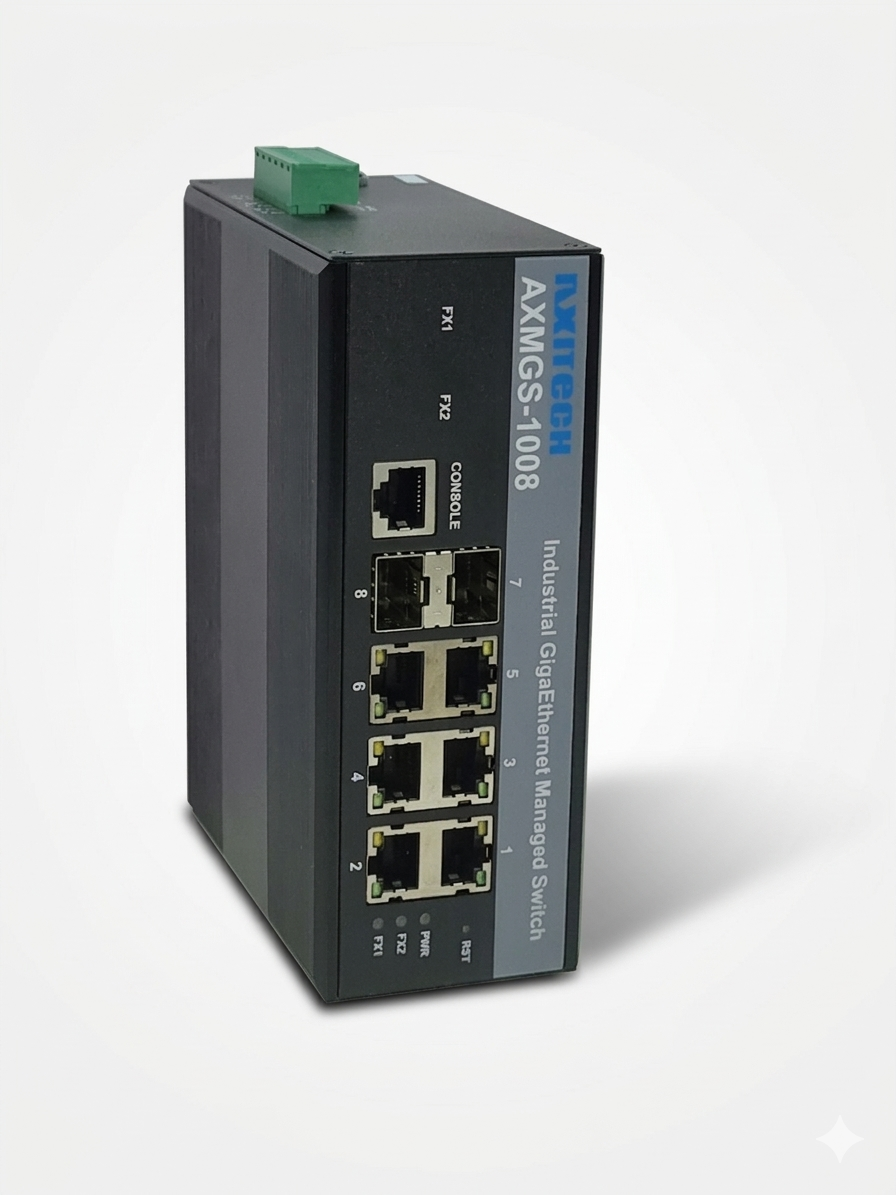

(Model:AXMGS-1008,AXMGS-1012)
›4port/6port/8port10/100/1000Tx,1/2/4nosGigaSFPports Optional
›ProprietaryAxiRingProtocol”AxiRing”(recoverytime<20ms), RSTP,STP for network redundancy
›IEC-61850-3compliantforIndustrialprotocol
›Industrial protocol siemens tcpip/modbus tcp support
›Easynetworkmanagementthroughwebbrowser,CLI,Telnet/serial console, Windows utility and SNMP
›Industrial-gradedesignwith-40to85°Coperatingtemperature
and redundant power inputs
AXMGSSeriesIndustrialEthernetswitch
(Model:AXMGS-1008,AXMGS-1012)
›4port/6port/8port10/100/1000Tx,1/2/4nosGigaSFPports Optional
›ProprietaryAxiRingProtocol”AxiRing”(recoverytime<20ms), RSTP,STP for network redundancy
›IEC-61850-3compliantforIndustrialprotocol
›Industrial protocol siemens tcpip/modbus tcp support
›Easynetworkmanagementthroughwebbrowser,CLI,Telnet/serial console, Windows utility and SNMP
›Industrial-gradedesignwith-40to85°Coperatingtemperature
and redundant power inputs
Overview
TheAXMGSseriesaredesignedtomeettheIndustrialdemandsofIndustrialEthernetSwitch.4GigabitindustrialEthernetportsare ideal for building dual Gigabit redundant Industrial ring.The “Axi Ring” redundant ring (recovery time < 20ms),
Specifications
| Power Requirements | |
|---|---|
| Input Voltage | 24VDC (12 to 40VDC), Redundant Dual Inputs |
| Input Current |
AXMGS-100X: <0.55A @ 24VDC AXMGS-101X-YF: <0.65A @ 24VDC |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Connector | 6-contact Terminal Block |
| Physical Characteristics | |
| Housing | Metal, IP50 Protection |
| Dimensions | 60.2 x 115.5 x 138.5 mm |
| Weight | 760 g |
| Installation | DIN-Rail Mounting, Wall Mounting |
| Environmental Limits | |
| Operating Temperature | -40°C to +85°C (-40°F to 185°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Humidity | 5% to 95% (Non-condensing) |
| Standards & Certifications | |
| Power Automation | IEC 61850-3, IEEE 1613 |
| Safety | UL 60950-1 |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS |
EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 4 EN 61000-4-6 (CS) Level 3 EN 61000-4-8 Level 3 |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
Features
Compliance
- AXMGS-100XSeriesforruggedIndustrialEnvironment
- CommandLineInterface(CLI)forquicklyconfigurationmajor managed functions

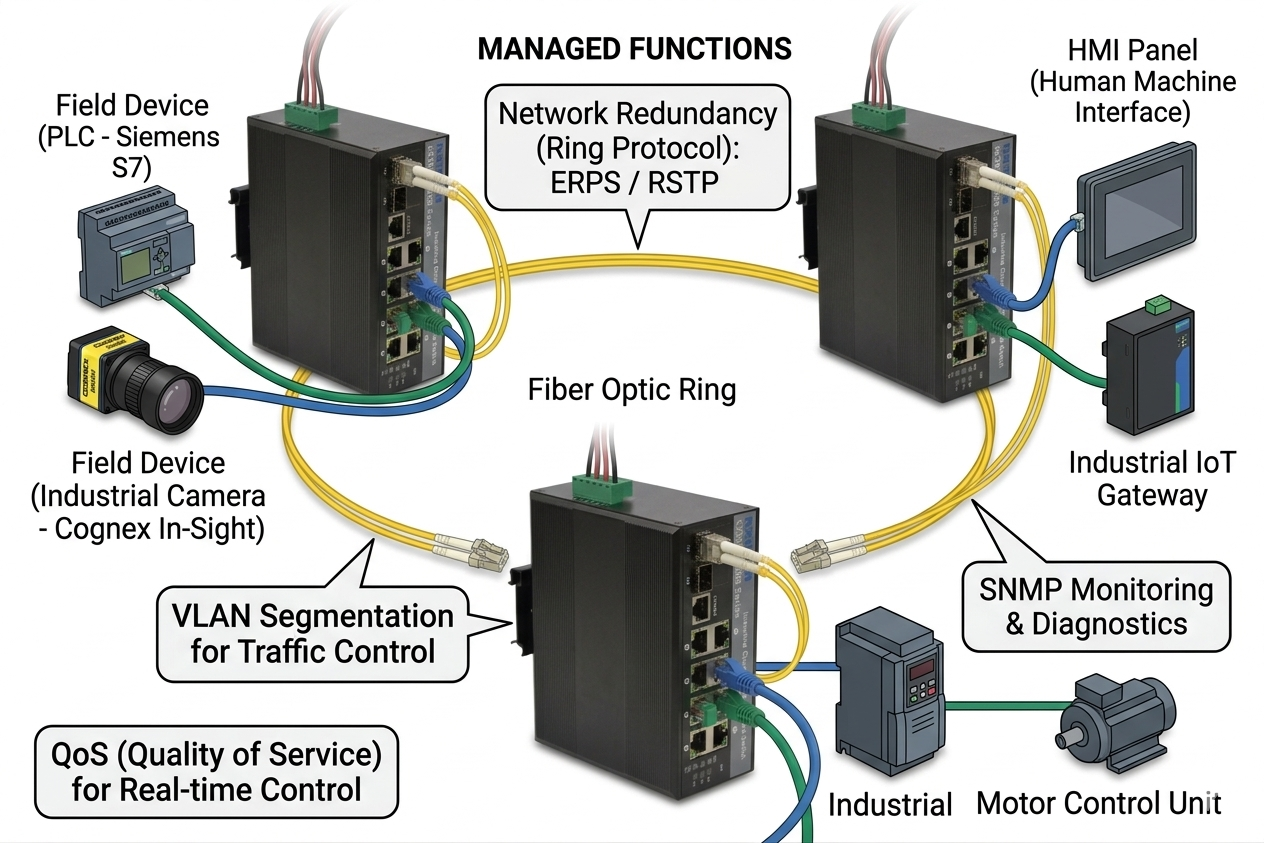

- FMCRingProtocol"AxiRing"(recoverytime<20ms),RSTP and STP for network redundancy
- IGMPsnoopingforfilteringmulticasttraffic

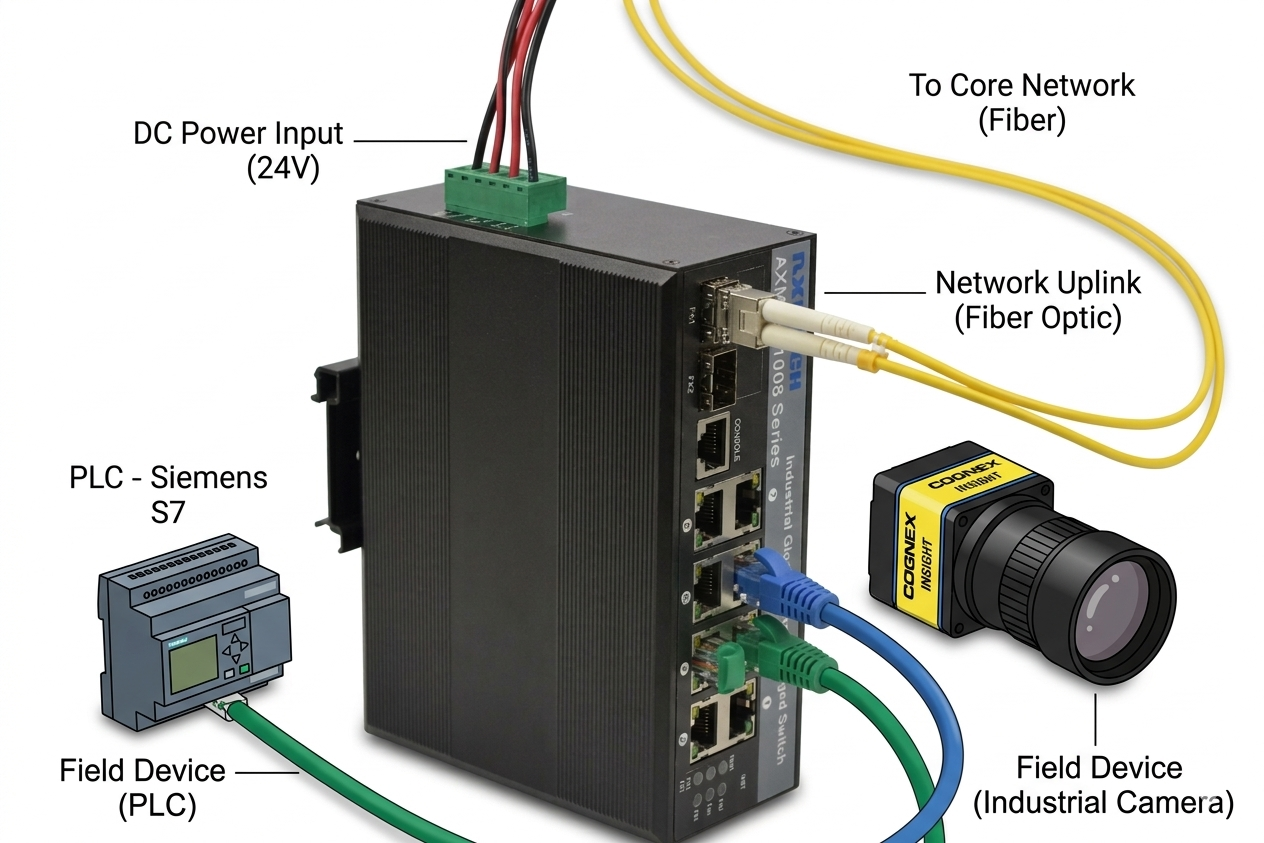

- ConnectivitysupportforDifferentPLC,HMIcontrolnetwork
- Supportport mirroring
- SupportAccessControlList(ACL)
- SupportDifferentIndustrialprotocolstorunindustrialControl Network
- DifferentIndustrialApplicationforrunMachinesmoothlyand communicate withe the defined controller.
Drawing
Ordering
| Available Models | Description |
|---|---|
| AXMGS-1004 | 4 Giga (10/100/1000 Tx) |
| AXMGS-1004-1F | 4 Giga (10/100/1000 Tx) + 1 SFP |
| AXMGS-1004-2F | 4 Giga (10/100/1000 Tx) + 2 SFP |
| AXMGS-1006-1F | 6 Giga (10/100/1000 Tx) + 1 SFP |
| AXMGS-1008 | 8 Giga (10/100/1000 Tx) |

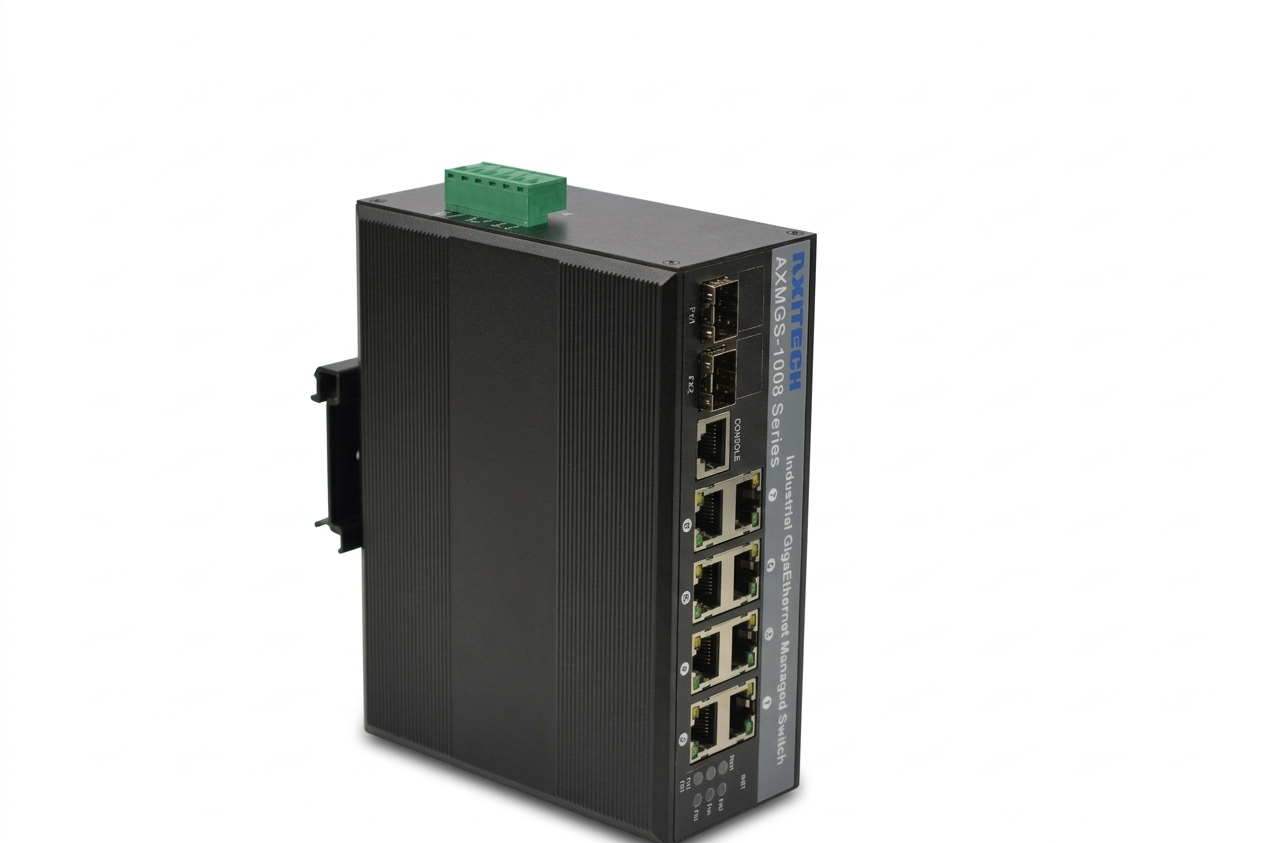

| AXMGS-1008-2F | 8 Giga (10/100/1000 Tx) + 2 SFP |
| AXMGS-1008-4F | 8 Giga (10/100/1000 Tx) + 4 SFP |
| AXMGS-1008-8F | 8 Giga (10/100/1000 Tx) + 8 SFP |
| AXMGS-1012-12F | 12 Giga (10/100/1000 Tx) + 12 SFP |
